Diamond Growth by Systems
Mono & Poly Crystalline

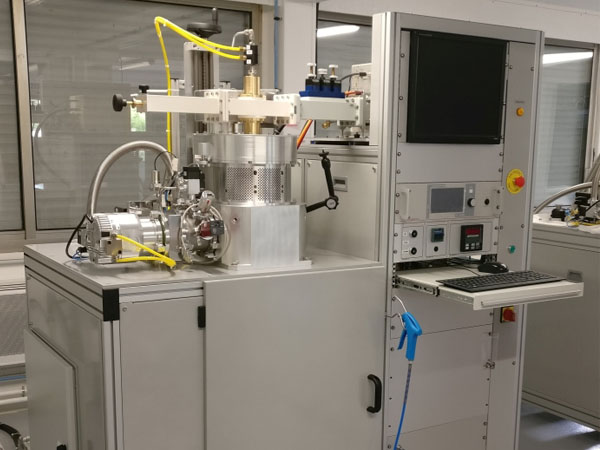

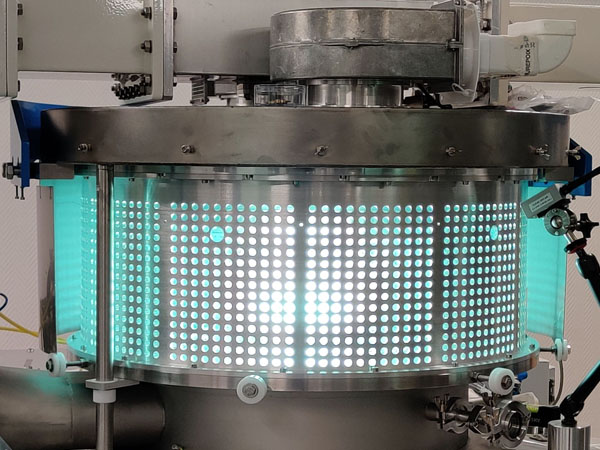

- SSDR 150 - Microwave plasma-assisted CVD (MW-PACVD) reactor
- Dedicated to Diamond Film and Gem Synthesis

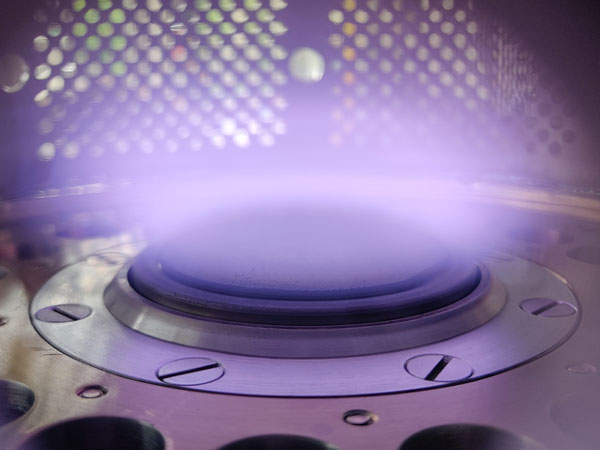

- High power density plasma for high purity diamond films & high growth rate
- Optimized microwave & plasma design. Reliable and robust equipment
- Perfectly adjusted to the needs of both R&D labs and industry
- Easy to clean and change bell jar configuration
- Highly suitable for doped diamond films.
- High power density plasma
- High operating pressure up to 400 mbar or more
- 6 kW micro-wave generator (SMPS)
- 4 gas Lines (additional lines on request)
- 2” Ф substrate holder
- Automatic height adjustment of the substrate carrier during growth (optional)
- Substrate spinning during growth (optional)
- Easy substrate loading / unloading
- Bi-chromatic IR pyrometer (475 – 1475 ° C)
- Turbo molecular pump + dry primary pump
- Basic reactor pressure: 2×10-7 mbar
- Fully automated process & very low maintenance
Application
- Mono-Crystalline Diamonds
- Poly-Crystalline Diamonds
- Jewellery Grade Diamonds
- Industrial Diamonds
- Lab Grade Gems
